Introduction: Beneath the Hood of the Future Lies a Battlefield

Amid the global race toward intelligent and electrified mobility, intelligent chassis technology stands not as an accessory but as the very execution backbone of automotive autonomy. While the industry buzzes with AI, LIDAR, and V2X, few acknowledge that none of those systems matter if your car can't brake safely, steer precisely, or maintain control under uncertain road conditions. The "smart" in smart cars isn't just about seeing and thinking—it's about acting.

This article dissects the critical components, evolving architectures, and lingering barriers in intelligent chassis systems. It is grounded entirely in a comprehensive technical seminar held at Tsinghua University, detailing years of front-line research. The narrative is unapologetically technical, targeting global procurement decision-makers, R&D strategists, and anyone serious about the mechanics behind autonomy.

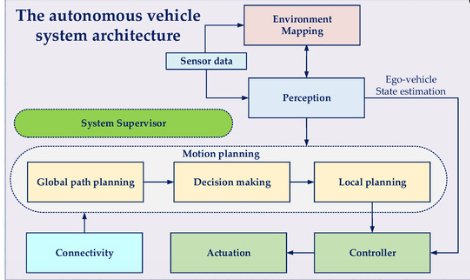

I. Intelligent Chassis as the "Cerebellum" of Autonomous Vehicles

While the autonomous vehicle's "brain" (sensor fusion and planning systems) often gets the spotlight, its "cerebellum" — the intelligent chassis — determines whether a car can follow through with the brain's intentions. Executing high-level trajectory commands depends on low-level precision control over drive, brake, and steering systems. Without a responsive and stable chassis, even the smartest AI becomes useless.

The intelligent chassis incorporates four executional pillars:

• Steer-by-wire

• Brake-by-wire

• Drive-by-wire

• Active suspension (as part of extended development)

Each of these systems must not only follow instructions but also evaluate feasibility, ensure safety, and intervene during edge-case scenarios. For instance, if a prescribed trajectory would induce rollover, the chassis must override it.

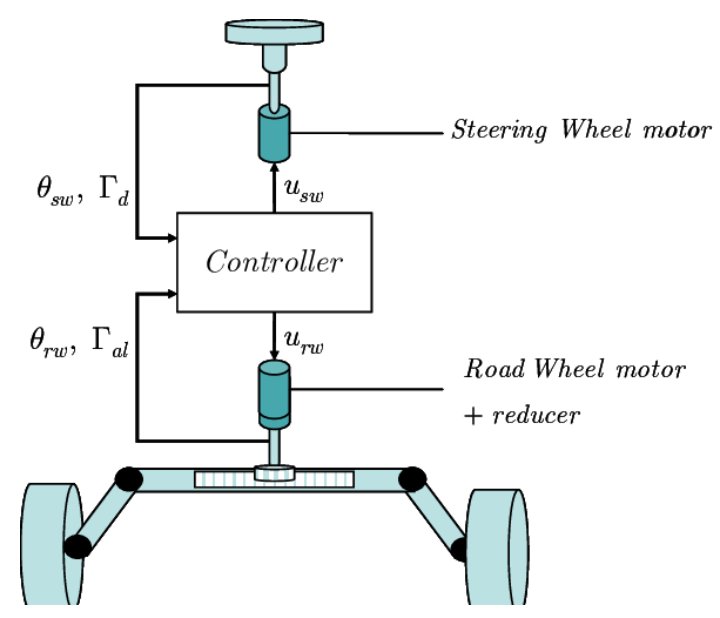

II. The Rise and Resistance of Steer-by-Wire (SbW)

Steer-by-wire replaces mechanical linkage with digital signal-based control. Conceptually elegant, it enables features like variable gear ratios and fully decoupled steering wheel configurations. In reality, the system wrestles with two stubborn challenges:

1. Feedback Simulation: Human drivers are neurologically wired to respond to steering feel. Current electric motor-based resistance emulation often lacks realism. Subjective driver discomfort remains a major adoption bottleneck.

2. Redundancy and Safety: The removal of physical fallback (no steering column) mandates hyper-reliable electronics and backup systems. Even with dual ECUs and fault-tolerant control logic, OEMs are cautious.

From an engineering standpoint, Tsinghua's team implemented predictive friction-compensated torque control algorithms (EMPC-based) that improved steering feel replication. However, user studies revealed variability in acceptance tied to experience levels. Seasoned drivers demand authenticity; newcomers accept abstractions.

More crucially, variable transmission ratio control — the ability to tune steering sensitivity with speed — provides unprecedented comfort and agility. Yet, excessive deviation from static ratios can confuse driver expectations and provoke dangerous over- or understeer reactions.

III. Brake-by-Wire (BbW): The Duality of EHB vs. EMB

Two principal architectures dominate BbW:

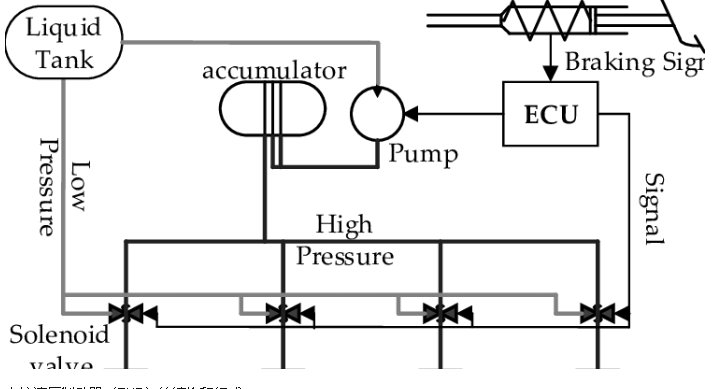

• EHB (Electro-Hydraulic Braking): Uses electronic control over traditional hydraulic systems.

• EMB (Electro-Mechanical Braking): Removes hydraulics entirely, operating via motor-driven calipers.

EHB is mature and widely adopted, particularly in One-Box integration schemes that unify boosters, ABS/ESC, and controllers into compact modules. It offers rear-fallback braking redundancy via dual-circuit design.

EMB, though theoretically superior, has stalled due to harsh reliability and thermal stress requirements. Positioned on the wheel hub (unsprung mass), EMB units endure extreme vibration, water exposure, and electromagnetic noise. Any failure here risks total loss of braking without mechanical override.

Control precision is EMB’s strength: motor torque can modulate caliper clamping force with far greater responsiveness than fluid-based systems. However, thermal expansion, electromagnetic interference, and torque ripple remain engineering thorns.

Tsinghua's research highlights the need for expansive model-based control incorporating non-linear friction, thermal variance, and time-variant degradation. Observers built with extended state estimation successfully reduced pressure control error to within 0.1 MPa and dynamic deviation under 0.4 MPa.

Still, no current EMB design matches the lifetime reliability expected of hydraulic systems. That alone forestalls their mainstream commercial deployment.

IV. Drive-by-Wire and the False Hope of Distributed Drive

Distributed drive — where each wheel is independently powered and controlled — promises total torque vectoring freedom. The theoretical benefits are immense:

• Zero-radius turning (BYD's viral demo)

• Active yaw control in high-speed maneuvers

• Torque-based trajectory correction on slippery roads

But promises aren’t practice. Independent torque control introduces complex instability risks. Differentials exist for a reason. Real-world roads throw varying friction, gradients, and terrain unpredictability at vehicles.

Tsinghua's analysis of BYD's tank-turn feature reveals nuanced limitations. The maneuver operates in four dynamic stages:

• Static torque initiation

• Elastic tire deformation

• Onset of sliding

• Steady-state rotation

Key metrics like yaw rate and wheel slip must be tightly bounded to avoid divergence. Vehicle control during this maneuver exists on a knife-edge between cinematic awe and catastrophic spin-out.

Moreover, wheel slip required for rotation is inherently an unstable state. Any friction asymmetry, sudden road surface change, or lateral slope can cause loss of control.

While simulation results look promising, physical implementations show that even small disturbances (like a 0.2 μ change in friction) can destabilize the system. Tsinghua's team underscores the need for robust multi-layer control hierarchies, incorporating:

• Real-time slip estimation

• Adaptive PID yaw rate controllers

• Fuzzy-logic slip ratio tracking

• Emergency brake override protocols

V. Unified Control is Not Integration—It’s Survival

Traditionally, steering, braking, and driving functions were designed independently, with limited coordination. In intelligent chassis systems, they must operate as one organism.

The control hierarchy must shift from component-based to function-based:

• Upper layer: Motion planning (desired trajectory)

• Mid layer: Integrated controller (torque/brake/steer force distribution)

• Lower layer: Actuator-specific logic (motor torque, pressure modulator, etc.)

This modular yet coordinated framework reduces latency, prevents control conflict, and enables cross-domain redundancy. For example, in case of steering actuator failure, torque vectoring can provide corrective yaw.

Tsinghua’s experimental platform has demonstrated unified tracking control with deviation margins below 3 degrees (steering) and sub-10% error in force estimation. These figures are promising but still below aerospace-grade standards.

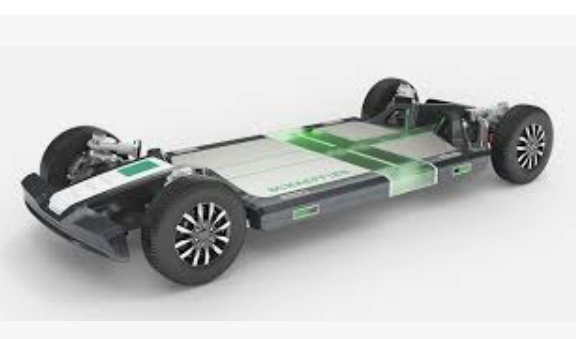

VI. All-Vector Chassis: A Dream That Demands Discipline

The pinnacle vision is the All-Vector Intelligent Chassis (AVIC), built around modular corner units capable of full-range motion control (longitudinal, lateral, and rotational).

Each "corner module" houses integrated drive, brake, steer, and suspension components. Grouped in pairs, these form virtual axles, enabling arbitrary vehicle shapes and sizes — from 4-wheel to 8-wheel architectures.

Geometrically, such a chassis can:

• Pivot around any point

• Execute diagonal or lateral motion

• Eliminate traditional steering arcs

However, this also introduces overactuation: more control inputs than needed for a given motion. Without strict software-defined constraints, this becomes mathematically unsolvable in real time.

Tsinghua's team proposed a variable-degree-of-freedom control strategy. Depending on operating mode (straight-line, turning, drifting), specific degrees of freedom are enabled or frozen to maintain solvability and optimize energy use.

But translating AVIC into practice faces Herculean obstacles:

• Sensor fusion for high-frequency vibration zones

• Actuator durability on unsprung mass

• Thermal regulation of corner units

• Packaging complexity for multi-ECU designs

No OEM has cracked this yet. But the race is underway.

VII. Pain Points: The Technical Barriers No One Likes to Talk About

1. Reliability vs Innovation: Many advanced systems (EMB, steer-by-wire) lack lifetime data under harsh usage cycles.

2. Thermal Constraints: Motors on unsprung mass undergo rapid heating without sufficient airflow.

3. Mechanical Redundancy Trade-offs: Going fully digital removes fallback options. How do you stop a car with no brakes?

4. Control Complexity: Overactuated systems are elegant in simulation but computationally burdensome and fragile in practice.

5. Driver Acceptance: Human-machine interaction lags far behind hardware innovation. A jittery steer-by-wire feel ruins trust.

VIII. The Road Forward: Unvarnished but Worth Pursuing

Despite the considerable gaps, intelligent chassis systems represent the most vital enabler of next-generation mobility. As software-defined vehicles (SDVs) become reality, the chassis must evolve from a mechanical platform into an intelligent, reactive, and modular execution system.

The future belongs to those who not only chase breakthroughs but also master failure. Chassis technology must move from "good enough" to "unquestionable." That leap requires ruthless attention to detail, uncompromising test cycles, and a deep humility in the face of physical realities.

Final Word

If you are a vehicle technology strategist, an OEM innovation officer, or a procurement lead evaluating the readiness of next-gen chassis platforms, don’t just ask what’s possible. Ask what’s stable, repeatable, and survivable.
