The Automotive World in Flux: Navigating the Electrification Era with Engineering Prowess

The global automotive industry is undergoing a seismic shift, a once-in-a-century transformation driven by the relentless pursuit of sustainability, efficiency, and intelligent mobility. In this dynamic landscape, where established giants and ambitious newcomers vie for supremacy, hybrid technology has emerged not merely as a transitional solution but as a sophisticated and highly viable pathway to an electrified future. It's a domain where engineering ingenuity, strategic foresight, and an unwavering commitment to innovation separate the leaders from the followers.

Enter Chery Automobile. A name synonymous with China's automotive ambition since its inception in 1997, Chery has consistently espoused a "technology-first" philosophy. This isn't just a tagline; it's a deeply ingrained ethos that has seen the company develop formidable in-house capabilities in core automotive components – engines, transmissions, and chassis. Now, as the industry pivots towards New Energy Vehicles (NEVs), Chery is leveraging its rich engineering heritage to make a significant statement with its Kunpeng Super Performance Electric Hybrid C-DM system, a technology suite poised to redefine expectations for hybrid powertrains.

This isn't justanother hybrid system. Chery's C-DM, representing its third generation of hybrid technology, is the culmination of over two decades of dedicated research and development, dating back to the early 2000s. It's a bold declaration of intent, a meticulously engineered response to the multifaceted demands of modern mobility: scorching performance, parsimonious fuel consumption, extended range, and uncompromising reliability.

This analysis aims to provide an exhaustive, technically granular exploration of Chery's C-DM technology for an audience that appreciates engineering depth and seeks to understand the intricate mechanics behind the marketing. We will dissect its architecture, scrutinize its core components, benchmark its performance, and evaluate its strategic implications, all while maintaining an objective lens that acknowledges both its triumphs and the competitive realities of the global automotive arena. For procurement professionals, engineers, and automotive strategists worldwide, understanding the nuances of technologies like C-DM is paramount to navigating the future of mobility.

1. Decrypting the Alphabet Soup: Understanding Chery's Hybrid Naming Convention

Before delving into the mechanical and electronic intricacies, it's crucial to demystify Chery's hybrid nomenclature. The automotive sphere is rife with acronyms, and Chery's system, while logical, benefits from clarification.

CDM (Chery Dual Mode): This is the cornerstone term, frequently associated with Chery's plug-in hybrid electric vehicle (PHEV) technology. While an official, explicit definition might be elusive, its application strongly suggests a system capable of operating in multiple modes – typically pure electric and various hybrid configurations. The "Dual Mode" likely alludes to this inherent flexibility, a critical aspect of modern PHEVs aiming for optimal efficiency across diverse driving scenarios. The "C-DM" designation specifically points to the Kunpeng Super Performance Electric Hybrid system.

Kunpeng Hybrid System Architecture: This is the overarching framework, the technological bedrock upon which Chery's hybrid ambitions are built. It's designed as a comprehensive powertrain solution, aiming to cover what Chery describes as "all human travel scenarios," moving beyond mere urban commuting to encompass high-efficiency cruising, high-performance driving, and even robust off-road applications. This ambition underscores the depth and breadth of Chery's R&D.

Product Series under Kunpeng: Within the Kunpeng architecture, Chery has delineated specific product streams to cater to varied demands:

o CDM/CEM (High Energy Saving): This line prioritizes fuel economy and efficiency, making it ideal for daily commuting and eco-conscious drivers.

o CDM-S/CEM-S (High Performance): Here, the focus shifts towards power output and dynamic driving characteristics, appealing to those who seek a more spirited experience.

o CDM-O/CEM-O (Strong Off-Road): Tailored for adventure, this series emphasizes robust power delivery and off-road capability, often incorporating specialized hardware.

CEM (Chery Extender Mode): This designates Chery's range-extender electric vehicle (REEV) technology. In a CEM system, the internal combustion engine functions primarily as a generator to charge the battery and/or supply power to the electric motors, rather than directly driving the wheels under most conditions. This approach, often termed "Kunpeng Golden Extender," focuses on maximizing electrical efficiency.

This structured naming system allows Chery to strategically position its hybrid offerings across different market segments and performance tiers, all stemming from the foundational Kunpeng architecture and its core C-DM technology.

2. Anatomy of a Hybrid Contender: The Kunpeng C-DM System Architecture

The Kunpeng C-DM system, particularly its third-generation iteration, represents a significant leap in Chery's hybrid capabilities. Its architecture is a sophisticated amalgamation of precisely engineered hardware and intelligent software, designed for scalability, efficiency, and performance.

2.1. Generational Evolution & Foundational Principles:

Chery's journey in hybrid technology has been one of iterative refinement. The company's initial foray into hybrid R&D in the early 2000s positioned it as one of China's pioneers in this field. This long-term commitment, spanning over 18 years before the landmark release of the C-DM system in April 2023, has allowed for the accumulation of invaluable experience and the progressive enhancement of its hybrid solutions. The formal production launch of C-DM dedicated engines and transmissions in June 2023 marked Chery's full-fledged entry into the high-performance hybrid era.

The current third-generation C-DM system is not a standalone marvel but is deeply integrated into Chery's broader "Yaoguang 2025" technology strategy, which aims to spearhead the company's transition towards NEVs and intelligent vehicles.

2.2. Key Architectural Pillars:

The C-DM system is built around several core architectural pillars:

· Dual-Motor Drive: A common feature in advanced hybrid systems, the dual-motor configuration allows for greater flexibility in power delivery and energy recuperation. This setup typically involves one motor primarily for propulsion and another that can assist in driving, act as a generator, or enable more complex power flow management.

· Multi-Speed DHT (Dedicated Hybrid Transmission): This is arguably one of the most distinctive features of Chery's C-DM, particularly in higher-end configurations. Unlike many hybrid systems that employ single-speed transmissions or e-CVTs, Chery's multi-speed DHT (often a 3-speed unit) aims to optimize engine operating points across a wider range of vehicle speeds, potentially offering benefits in both efficiency and performance, especially at higher speeds. We will delve into the DHT in greater detail later.

· Intelligent Control System: The brain of the C-DM system, this sophisticated electronic control unit (ECU) manages the complex interplay between the internal combustion engine (ICE), electric motors, and battery. It dynamically selects the optimal drive mode (pure electric, series hybrid, parallel hybrid, engine direct drive) based on real-time driving conditions, driver input, and battery state of charge (SOC).

· Integration with "Mars Architecture" (in some versions): For certain models, the Kunpeng system integrates with Chery's "Mars Architecture," a new electric platform. This platform boasts advanced technologies such as active hydraulic suspension, steer-by-wire, electro-mechanical braking, and integrated chassis control, suggesting a holistic approach to vehicle dynamics and electrification.

2.3. System Components Overview:

At its core, the C-DM system comprises:

1. Hybrid-Specific ACTECO Engine: These engines are not simply repurposed gasoline units but are specifically designed and optimized for hybrid operation, featuring technologies that prioritize thermal efficiency and torque characteristics suitable for hybrid duty cycles.

2. Dedicated Hybrid Transmission (DHT): As mentioned, this can be a 1-speed or 3-speed unit, integrating electric motors and clutches to manage power flow.

3. High-Performance Electric Motors: These provide instant torque for acceleration and enable pure electric driving.

4. Power Battery System: Utilizing either Lithium Iron Phosphate (LFP) or Ternary Lithium (NCM/NCA) cells, coupled with an advanced Battery Management System (BMS) and thermal management.

5. Vehicle Control Unit (VCU) / Hybrid Control Unit (HCU): The master controller orchestrating the entire powertrain.

This architectural framework provides the C-DM system with the versatility to deliver a spectrum of driving experiences, from silent, emissions-free urban cruising to robust, long-distance highway performance.

3. The Prime Mover: ACTECO Hybrid-Dedicated Engines – Where Thermal Efficiency Reigns

Chery's longstanding expertise in internal combustion engine R&D, dating back to its founding, serves as a critical foundation for its hybrid powertrain success. The company proudly asserts that this deep ICE knowledge is a key differentiator. The ACTECO engine family, specifically its hybrid-dedicated iterations, embodies this commitment.

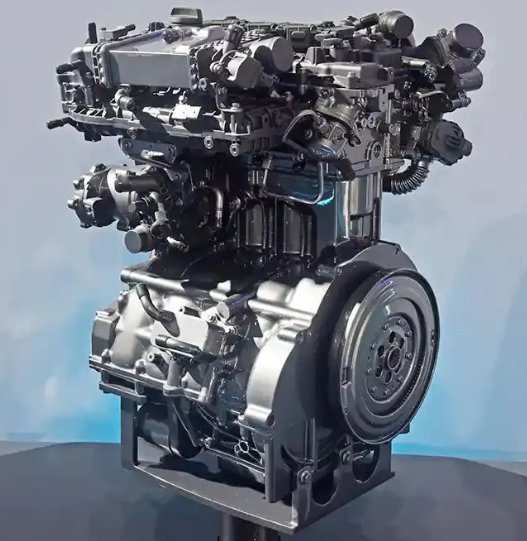

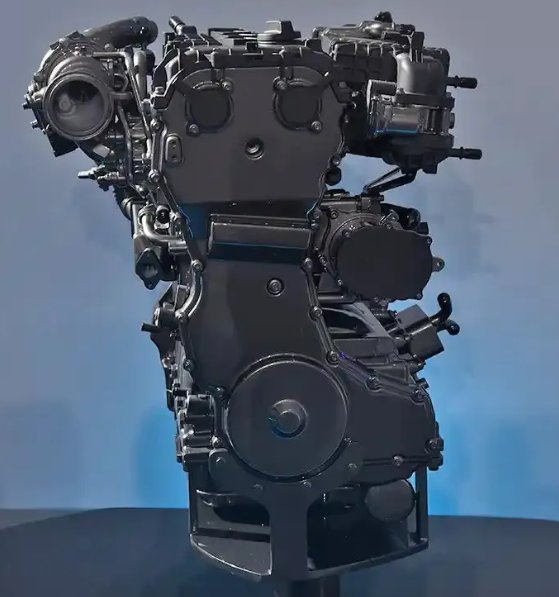

3.1. ACTECO 1.5TGDI (H4J15) – The Workhorse:

This engine is a prominent feature in many Chery C-DM models and serves as an excellent case study in modern hybrid engine design.

· Displacement: 1.498 liters (1498 cc)

· Bore x Stroke: 72 mm x 92 mm. The relatively long stroke is often indicative of a design favoring torque and efficiency in the lower to mid-rpm range, which is beneficial for hybrid applications where the engine often operates in specific optimal zones.

· Compression Ratio: A remarkable 16:1. Such a high compression ratio is a cornerstone of achieving high thermal efficiency. In gasoline engines, this is often made viable through advanced combustion control and, critically for hybrids, the Miller or Atkinson cycle.

· Rated Power: 115 kW (approximately 154-156 hp) at 5200 rpm. This output is robust for a 1.5-liter turbocharged unit, especially one optimized for efficiency.

· Maximum Torque: 220 N·m (Newton-meters) available across a broad range of 2500-4000 rpm. This wide, flat torque curve is highly desirable, providing responsive performance without needing to rev the engine excessively.

· Minimum Brake Specific Fuel Consumption (BSFC): 196 g/kWh. BSFC is a crucial measure of engine efficiency; lower values are better. This figure is competitive.

· Weight: 106 kg (dry). A lightweight engine contributes to better vehicle dynamics and overall efficiency.

· Emission Standard: Guo VI B + RDE. Compliant with stringent Chinese emission standards, including Real Driving Emissions testing, indicating its suitability for modern environmental regulations.

· Claimed Peak Thermal Efficiency: An impressive figure often cited as exceeding 44.5%, with some sources within the provided texts even suggesting figures as high as 48% for newer iterations like the "Kunpeng Tianqing" engine. This places it among the world's most thermally efficient gasoline engines. For context, many conventional gasoline engines operate in the 35-40% thermal efficiency range. Reaching levels above 44% is a significant engineering feat.

3.1.1. Core Technologies Enabling H4J15's Efficiency:

Achieving such high thermal efficiency is not accidental; it's the result of deploying a suite of advanced technologies:

· Deep Miller Cycle: This is paramount for enabling the high compression ratio. The Miller cycle modifies the traditional Otto cycle by closing the intake valve later (or earlier, in some variants). In the common late-intake-valve-closing version used for efficiency, the effective compression stroke is shorter than the expansion stroke. This reduces pumping losses and allows for a higher geometric compression ratio without excessive peak cylinder pressures and temperatures, mitigating knock (premature detonation) and improving thermodynamic efficiency.

· Fourth-Generation i-HEC (Intelligent High-Efficiency Combustion) System: This likely encompasses a sophisticated approach to in-cylinder fuel-air mixture preparation, ignition, and combustion control to maximize energy extraction and minimize emissions. It might include optimized intake port design for high tumble/swirl, precise fuel injection strategies, and advanced ignition systems.

· High-Pressure Direct Injection (Up to 350 bar, with future targets of 600 bar mentioned): Higher injection pressures lead to finer fuel atomization, more homogeneous air-fuel mixture, and more complete combustion. This improves efficiency and reduces particulate emissions.

· Intelligent Thermal Management System (i-HTM): Critically important for hybrid engines, which often operate intermittently. An intelligent thermal management system rapidly brings the engine to its optimal operating temperature and maintains it precisely. This might involve a map-controlled thermostat, an electric water pump, and strategies to reduce friction during warm-up. The "water-cooled intercooler" also contributes to precise intake air temperature control.

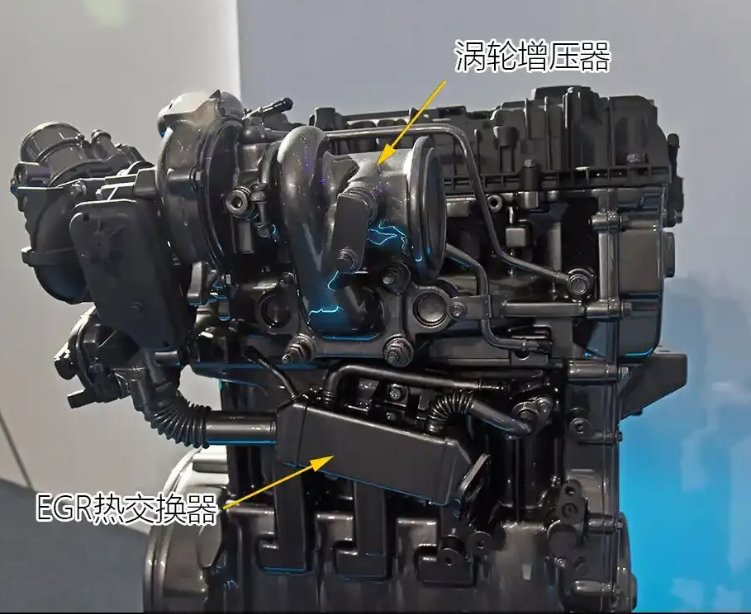

· Efficient Turbocharging (E-WG - Electronic Wastegate): A turbocharger is essential for downsizing while maintaining power. An electronic wastegate offers more precise boost control compared to pneumatic actuators, improving responsiveness and efficiency across a wider operating range.

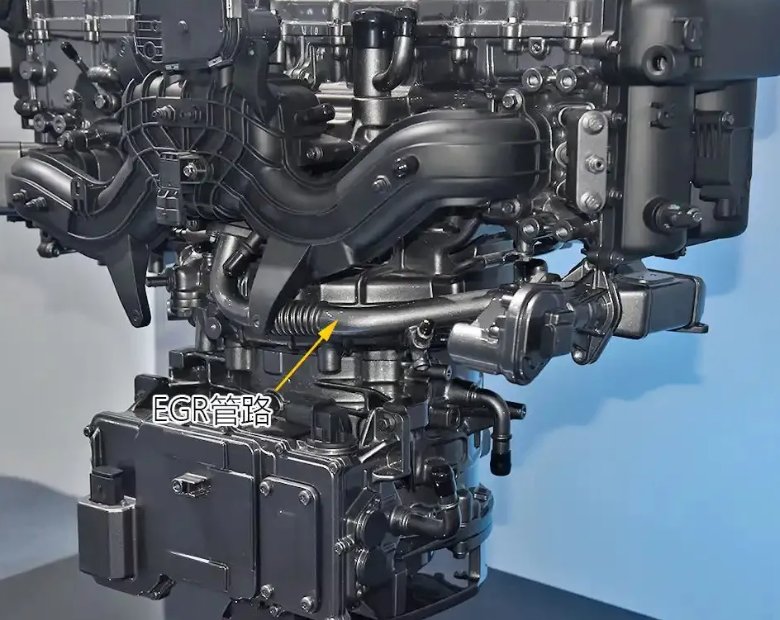

· Low-Pressure Cooled EGR (Exhaust Gas Recirculation): EGR reintroduces a portion of exhaust gas into the intake, lowering combustion temperatures. This reduces NOx emissions and can also help mitigate knock, allowing for more aggressive ignition timing or higher compression, thereby improving efficiency. Cooling the EGR gas increases its density, allowing for a higher EGR rate without displacing too much fresh air.

· Integrated Exhaust Manifold (IEM): Integrating the exhaust manifold into the cylinder head reduces thermal mass, leading to faster catalyst light-off (reducing cold-start emissions) and can improve turbocharger response due to shorter exhaust paths.

· Dual Variable Valve Timing (DVVT): Adjusting the timing of both intake and exhaust valves optimizes engine breathing across different RPMs and loads, enhancing both performance and efficiency.

· Friction Reduction Technologies: Meticulous attention to reducing mechanical friction through optimized piston rings, low-viscosity oils, specialized coatings (e.g., Diamond-Like Carbon - DLC), and precision bearing design.

3.2. ACTECO 2.0TGDI – The Powerhouse:

While the 1.5TGDI focuses heavily on efficiency, Chery also offers a more potent 2.0TGDI for applications demanding higher performance, particularly in CDM-S (High Performance) and CDM-O (Off-Road) variants.

· Displacement: 2.0 liters.

· Maximum Power: Reported figures vary, with some sources citing up to 192 kW (approximately 257 hp) and others mentioning up to 200kW for specialized off-road versions.

· Peak Torque: Around 400 N·m. This substantial torque figure is key for effortless acceleration and, in off-road contexts, for tractive capability.

· Claimed Maximum Effective Thermal Efficiency: Around 41% (with some newer specialized versions like the one for CDM-O reaching 45.5% and boasting 100% gradeability engine operation). While slightly lower than the hyper-efficient 1.5TGDI, 41% is still a very respectable figure for a performance-oriented 2.0-liter turbocharged engine. It often pairs with 7-speed DCTs or 8-speed automatic transmissions in non-hybrid applications, but in C-DM, it's mated to specialized DHTs.

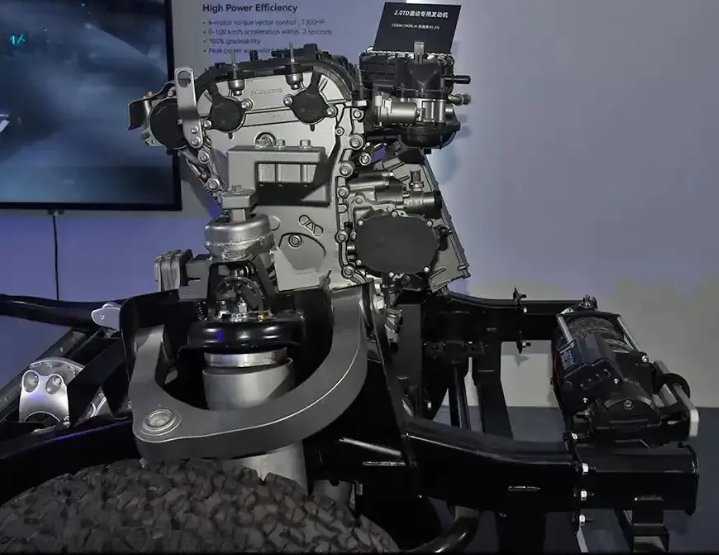

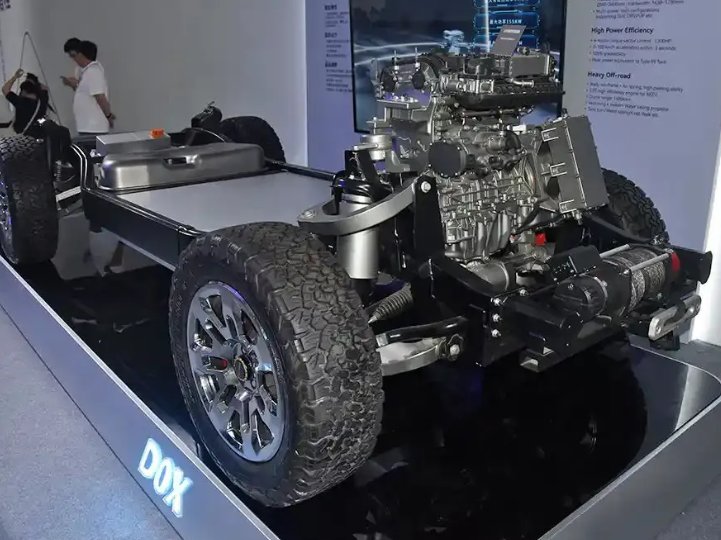

3.2.1. Specialized 2.0T for CDM-O/CEM-O (Off-Road):

The information highlights a specific 2.0T engine variant for the off-road focused Kunpeng architecture:

· Enhanced Power: Up to 200 kW.

· Extreme Durability & Environmental Adaptability:

o IP68 Waterproof and Dustproof Rating: Essential for deep water wading and dusty off-road conditions.

o Maximum Wading Depth Capability: An astonishing 1240 mm mentioned in one context (though this might refer to vehicle capability enabled by the engine's protection).

o Operational Under Extreme Inclines: Functions normally at 100% fore-aft tilt and 70% side-to-side tilt. This is critical for maintaining oil supply and engine operation on severe slopes.

o Wide Temperature Tolerance: -50°C to 115°C.

This demonstrates a tailored engineering approach, ensuring the powertrain can withstand the rigors of demanding off-road scenarios.

3.3. The Significance of High Thermal Efficiency:

A high thermal efficiency percentage means more of the fuel's chemical energy is converted into useful mechanical work, and less is wasted as heat. For a hybrid vehicle, this translates directly to:

· Lower Fuel Consumption: Especially in charge-sustaining hybrid mode or during extended engine operation.

· Reduced CO2 Emissions: Directly proportional to fuel burned.

· Longer Overall Range: Less fuel needed for the engine to cover distances or charge the battery.

· Potentially Smaller Cooling System Requirements: Though high-output systems still need robust cooling.

Chery's pursuit of >44.5% (and aiming for 48%) thermal efficiency places its engines at the cutting edge, rivaling and in some cases potentially surpassing benchmarks set by other global leaders in hybrid engine technology.

4. The Gear Master: Chery's Dedicated Hybrid Transmissions (DHT) – More Than Just Cogs

The transmission is a critical, and often defining, component of any hybrid system. Chery's strategy here, particularly with its multi-speed DHTs, is noteworthy. It represents a different engineering philosophy compared to the e-CVT (Toyota, Honda) or single-speed reduction gears (many BEVs and some simpler PHEVs) or even some dual-clutch based hybrid systems.

4.1. The Rationale for Multi-Speed DHTs:

Internal combustion engines have specific RPM ranges where they operate most efficiently (lowest BSFC) or produce peak power/torque. Electric motors, conversely, offer instant torque from standstill and maintain high efficiency across a broader RPM range.

· Single-Speed/e-CVT: These systems often prioritize smoothness and can keep the engine in its optimal efficiency zone under many conditions. However, at very high speeds or under sustained high load, the engine might be forced to operate at higher, less efficient RPMs, or the system might rely more heavily on the electric motor, potentially impacting overall efficiency or performance if the motor isn't sufficiently powerful or if battery power is limited.

· Multi-Speed DHT (e.g., Chery's 3-speed): By introducing multiple fixed gear ratios, a multi-speed DHT can:

o Allow the engine to operate closer to its peak efficiency or peak power RPM across a wider range of vehicle speeds.

o Enable better utilization of engine torque for acceleration, especially at higher speeds.

o Potentially offer a more direct and engaging driving feel, akin to a traditional automatic transmission, for some drivers.

o Provide more "geared" steps for the electric motors as well, potentially improving their efficiency in certain scenarios or allowing for smaller, higher-revving motors.

Chery's C-DM system employs both 1-speed and 3-speed DHT variants, catering to different priorities.

4.2. Chery's DHT Variants & Technical Specifications:

4.2.1. The 1-Speed DHT (Often termed "无级超级电混DHT" - Infinitely Variable Super Electric Hybrid DHT):

· Architecture: Typically a P1+P3 configuration.

o P1 Motor: Located at the engine side, often acting as an ISG (Integrated Starter Generator) for engine starting, electricity generation, and potentially assisting the engine.

o P3 Motor: The main traction motor, located post-transmission (or integrated within it) and driving the wheels.

· Characteristics:

o Focuses on smoothness ("no shifting feel") and efficiency, particularly for urban and moderate-speed driving.

o The "infinitely variable" aspect likely refers to the smooth power blending characteristic of series-parallel hybrids, rather than a mechanical CVT in the traditional sense. It achieves this through the interplay of the engine and electric motors.

o Total drive motor power can reach 150 kW in some applications.

o System EV (Electric Vehicle mode) maximum mechanical efficiency is stated as 98%.

o Supports pure electric drive, parallel drive, series drive, and energy recovery modes.

· Analogy: The design philosophy shares similarities with systems like Geely's Leishen EM-i, prioritizing seamless transitions and efficiency.

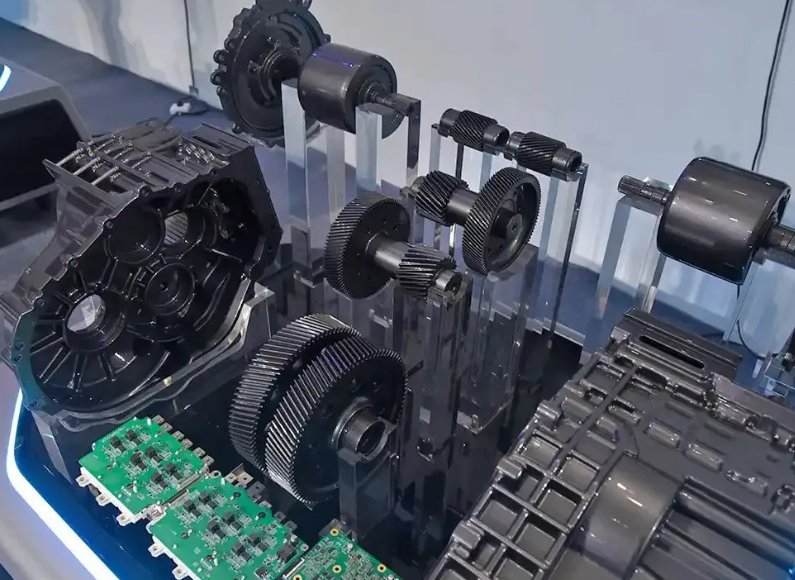

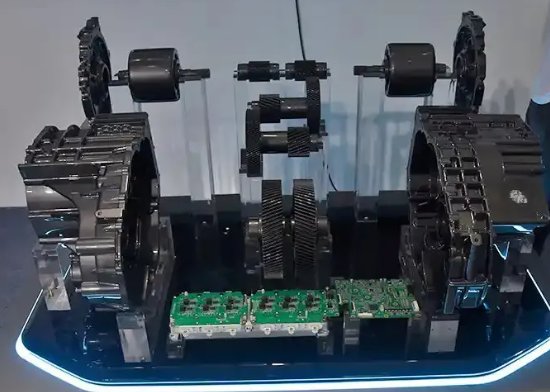

4.2.2. The 3-Speed DHT – The Performance and Versatility Champion:

This is where Chery's DHT technology truly differentiates itself. It's a more complex unit designed for higher performance and broader operational flexibility.

· Key Acclaim: "3-engine, 3-gear, 9-mode, 11-speed ratio" (三擎三挡九模十一速).

o "3-engine": Refers to the ICE and two electric motors (typically P2 + P2.5 configuration).

o "3-gear": Three physical forward gear ratios for the engine and potentially for the motors as well.

o "9-mode": Nine distinct operating modes, including pure electric, series, various parallel combinations, engine-only drive, and regenerative braking.

o "11-speed ratio": Eleven combined gear ratios or speed matching points resulting from the interplay of the engine's 3 gears and the electric motors.

· Architecture (P2 + P2.5):

o P2 Motor: Located between the engine and the transmission gearing. It can crank the engine, provide electric drive, assist the engine in parallel mode, and regenerate energy.

o P2.5 Motor: Also a traction motor, often integrated within the transmission casing and capable of working in conjunction with the P2 motor and the engine. This architecture allows for powerful "three-engine" parallel drive.

· Core Components: Typically involves multiple clutches (e.g., C1, C2, C3) and synchronizers to manage power flow from the engine and motors through the different gear sets.

o Clutch C1 might control engine engagement.

o Clutches C2 and C3 might select different gear paths (e.g., C2 for 1st/3rd, C3 for 2nd).

· DHT125 (A Key Example of the 3-Speed DHT):

o Number of Physical Gears: 3.

o Working Modes: 9.

o Combined Gear Ratios/Steps: 11.

o Maximum Input Torque (Engine): Around 360 N·m (some sources say overall max system input 510 N·m).

o Transmission Efficiency: Claimed up to 97.6%. This is a crucial figure, as complex transmissions can incur higher frictional losses.

o Maximum Output Torque (Wheel Side): >4000 N·m (after gear multiplication). This signifies strong tractive effort.

o Supported Top Speed: Over 200 km/h.

o Dry Weight: Approximately 112 kg.

o Dimensions: Roughly 612.5 mm x 389 mm x 543.5 mm.

o Integrated Electric Motors:

§ EM1 (P2 Motor): Max Power ~55 kW, Max Torque ~160 N·m, Max RPM ~6500 rpm.

§ EM2 (P2.5 Motor): Max Power ~70 kW, Max Torque ~155 N·m, Max RPM ~12000 rpm.

o Efficiency Focus: Incorporates low-friction design and on-demand hydraulic pressure allocation to minimize parasitic losses.

o Applications: Found in models like Fengyun A8, Shanhai L6, Fengyun E05.

4.2.3. Higher Torque Capacity DHTs (DHT160, DHT165, DHT230, DHT280):

These variants are designed to pair with more powerful engines (like the 2.0TGDI) and cater to high-performance or heavy-duty/off-road applications.

· DHT160: Associated with the CDM/CEM (High Energy Saving) line, paired with 1.5T engines.

· DHT165: Versatile, used in both CDM-S/CEM-S (High Performance) and CDM-O/CEM-O (Off-Road) with 1.5TGDI and 2.0TGDI engines.

· DHT230: For CDM-S/CEM-S, likely handling higher torque from the 2.0TGDI.

· DHT280: The top-tier unit, also for CDM-S/CEM-S and crucially for CDM-O/CEM-O.

o Special Off-Road Features: Includes an "off-road gear" (likely a low-range reduction) and differential lock configurations. This significantly enhances tractive capability and control in challenging terrain.

o High System Output: When paired with the 2.0TGDI, system outputs can reach up to 280 kW.

o High Motor Speeds: Hybrid motor speeds up to 24,000 rpm are mentioned in conjunction with these high-performance DHTs, indicating the use of advanced, high-speed electric motor technology.

4.3. Transmission Control and Drive Modes:

The sophisticated control system orchestrates a multitude of drive modes to optimize for varying conditions:

· Pure Electric Mode: Solely driven by electric motors using battery power. Ideal for urban commuting and low-speed cruising, offering zero tailpipe emissions.

· Series Hybrid Mode: The engine runs at an optimal RPM to drive a generator (typically the P1 or P2 motor), which charges the battery and/or powers the main traction motor(s) (P2.5 or P3). Useful when the battery is low or for sustained moderate speeds where direct engine drive might be less efficient.

· Parallel Hybrid Mode: Both the engine and electric motor(s) combine their torque to drive the wheels. This is typically used for strong acceleration or high-load situations (e.g., climbing hills). With the 3-speed DHT, this can occur in multiple gear ratios.

· Engine Direct Drive Mode: The engine directly drives the wheels through one of the DHT's gear ratios. Most efficient for steady-state highway cruising when the engine can operate in its efficiency sweet spot. The electric motors may be disengaged or provide minimal assist/regeneration.

· Regenerative Braking Mode: During deceleration or braking, the electric motors act as generators, converting kinetic energy back into electrical energy to recharge the battery. The multi-gear setup can potentially allow for more nuanced regenerative braking across different speeds.

· Charging Mode: The engine can run to charge the battery while stationary or driving.

The intelligent switching between these modes, managed by the Hybrid Control Unit (HCU), is seamless and aims to be imperceptible to the driver. The "TEM super-efficient dual-motor power distribution technology" mentioned in some contexts likely refers to the advanced algorithms that optimize this power splitting and blending for maximum efficiency, claiming an average efficiency of over 90% for the drive system.

5. The Electric Heartbeat: Motors, Batteries, and Management Systems

The "electric" part of "electric hybrid" is just as crucial as the combustion engine and transmission. Chery's C-DM system incorporates robust electric drive components and sophisticated battery technology.

5.1. Electric Motors:

· Power & Torque Characteristics: As detailed with the DHT125 (EM1: 55kW/160Nm; EM2: 70kW/155Nm), the system uses multiple motors with specific roles. The combined output of these motors provides instant torque for responsive acceleration and enables efficient electric-only operation.

· High-Speed Motors: The mention of motor speeds up to 24,000 rpm in high-performance DHT configurations (DHT230, DHT280) points to the use of advanced permanent magnet synchronous motors (PMSMs) designed for high power density and rotational speeds.

· EDU (Electric Drive Unit) Configurations for Performance/Off-Road:

o EDU240 & EDU400: Dual-motor electric drive configurations for CDM-S/CEM-S, indicating powerful electric propulsion capabilities.

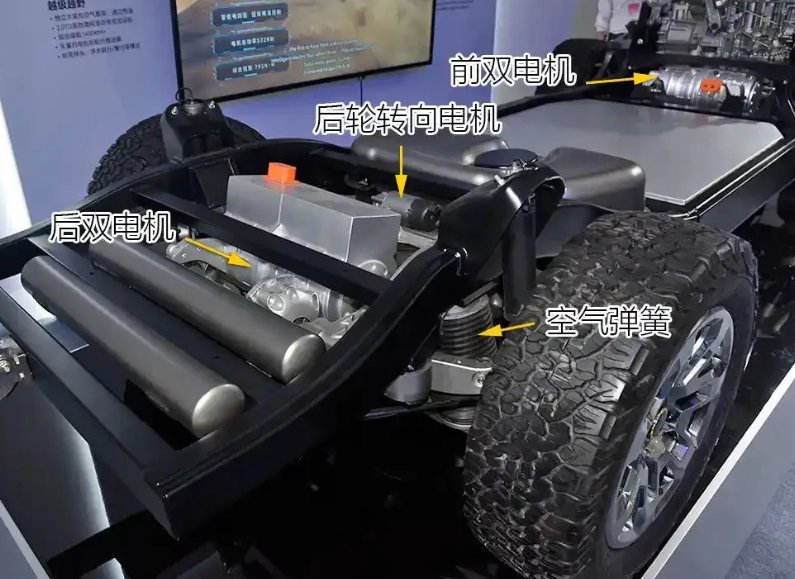

o EDU600: A dual-motor setup for the extreme CDM-O/CEM-O off-road line.

§ Distributed Dual Motors: This setup allows for sophisticated torque vectoring.

§ Immense Output: One source mentions a "distributed dual-motor assembly with a total output of 1200kW / 18000N·m" (This 18,000 N·m is almost certainly wheel torque after gearing, and 1200kW (1600+ hp) is an extraordinarily high figure, possibly referring to peak output for a specialized platform like the Super Hybrid Off-Road Platform concept). A more grounded figure associated with the EDU600 within the CDM-O/CEM-O architecture is a maximum power of around 1200kW for a vehicle system (likely quad-motor concept), enabling features like原地掉头 (in-place turning/tank turn). For a single EDU600 unit, a combined motor power contributing to a vehicle's overall system would be more realistic. The "vector four-motor" concept with 1300 hp total output and 100% gradeability for the Super Hybrid Off-Road Platform reinforces this high-power electric drive focus.

· Dual-Motor Distributed Electric Drive Assembly: Shown at events, these EDU400/EDU600 units highlight Chery's development in advanced electric axles, capable of independent wheel torque control for enhanced traction and dynamics (Torque Vectoring Control - TVC).

5.2. Power Battery System:

The battery is the energy reservoir for the electric part of the powertrain.

· Battery Chemistry: Chery utilizes both:

o Lithium Iron Phosphate (LFP): Known for safety, long cycle life, and lower cost, though typically with slightly lower energy density than NCM/NCA.

o Ternary Lithium (NCM/NCA): Offers higher energy density (more range for a given weight/volume) but can be more expensive and require more complex thermal management.

o M3P (Phosphate-based, likely LMFP - Lithium Manganese Iron Phosphate): Mentioned for a 34.46 kWh battery from CATL, M3P is a newer generation chemistry aiming to blend the safety and cost benefits of LFP with improved energy density, approaching that of some NCM chemistries.

· Capacity Examples:

o Fengyun A8L: 18.67 kWh (LFP).

o Ruijia 9 C-DM: 19.43 kWh.

o Starway Lanyue C-DM: CATL 34.46 kWh M3P battery.

· Energy Density: For the Fengyun A8L's 18.67 kWh LFP pack, an energy density of 105 Wh/kg is cited.

· Voltage Platform: While not always explicitly stated for all models, high-performance PHEVs are increasingly moving towards 400V or even 800V architectures (though 800V is less common in current PHEVs than in high-end BEVs). The CDM-3.0 module description mentions 400V/800V selectable DC bus.

· Safety and Durability:

o IP68 Protection: The battery packs are designed to be highly resistant to water and dust ingress, crucial for durability and safety, especially for off-road capable vehicles.

o NP (No thermal Propagation / Non-diffusion) Design: This is a critical safety feature. It aims to prevent thermal runaway in one cell from spreading to adjacent cells, thus mitigating the risk of battery fires.

o Collision Safety: Designs incorporate robust crash protection, with some systems claiming to withstand impacts up to 50 times the national standard. High-voltage disconnection within milliseconds (e.g., 2ms) upon collision is also a key safety feature.

· Charging:

o AC Charging: Standard for overnight or destination charging.

o DC Fast Charging ("Super Flash Charging"): Some C-DM models support DC fast charging, with figures like "30% to 80% in 18 minutes" quoted for the Fengyun A8L. This is a significant convenience for PHEV users.

· External Discharge (V2L - Vehicle-to-Load): The ability to use the car's battery to power external appliances (e.g., up to 6.6 kW for Fengyun A8L) is an increasingly popular feature, adding utility for camping or emergency power.

5.3. Battery Management System (BMS) and Thermal Management:

· Intelligent BMS: Monitors and controls individual cell voltages, temperatures, and state of charge (SOC) / state of health (SOH). It ensures the battery operates within its safe limits, optimizes charging and discharging, and prolongs battery life.

· Smart Thermal Management: Maintaining optimal battery temperature (typically 20-35°C) is vital for performance, longevity, and safety. C-DM systems employ sophisticated thermal management, which can include liquid cooling/heating, to manage battery temperatures effectively across diverse ambient conditions and load scenarios (e.g., fast charging, high-power discharge). The "fourth-generation intelligent thermal management" for engines likely has a counterpart for battery systems.

6. Performance Unleashed: Benchmarks and Real-World Capabilities

Technical specifications are one thing; how they translate into real-world performance is another. Chery C-DM equipped vehicles have demonstrated compelling figures in various metrics.

6.1. Fuel Efficiency and Range:

This is a cornerstone of any hybrid's appeal.

· Fengyun A8:

o Measured Fuel Consumption: As low as 2.68 L/100km in some tests. One Hainan island challenge yielded an average of 2.66 L/100km.

o Comprehensive Range: Over 1400 km, with one specific record-setting run for the C-DM 5.0 equipped Fengyun A8L reaching an astonishing 2369.9 km.

o Pure Electric Range (CLTC): Around 106 km (some sources say up to 145km for A8L, depending on battery and test cycle).

· Tansuo 06 (Explore 06) C-DM:

o Measured Pure Electric Range: 161.9 km in one test.

o Comprehensive Range: 1840.7 km in the same test.

o Fuel Consumption (Loss-of-charge/Feed Power): 3.2 L/100km. Other sources quote a general 4.2 L/100km (WLTC) for "ordinary versions." This "loss-of-charge" or "feed power" (亏电油耗 - kuīdiàn yóuhào) fuel consumption is a critical metric for PHEVs, indicating efficiency when the battery is depleted and the car operates primarily as a conventional hybrid.

· Starway (Xingtu) Yaoguang C-DM:

o Comprehensive Fuel Consumption: 1.76 L/100km (likely under specific favorable test conditions or with significant electric driving).

o Loss-of-charge Fuel Consumption: 4.76 L/100km.

o Comprehensive Range: Over 1400 km.

· Chery Fengyun A9 (with next-gen C-DM 6.0):

o Pure Electric Range: 250km+.

o Comprehensive Range: 2000km+.

o Measured Fuel Consumption: 3.65 L/100km.

These figures, especially the extremely low fuel consumption in certain tests and the very long combined ranges, position Chery's C-DM technology as highly competitive. The pure electric ranges offered are generally sufficient for daily commuting for many users.

6.2. Acceleration and Power:

C-DM isn't just about sipping fuel; it can also deliver exhilarating performance.

· Yaoguang C-DM e-AWD (Electric All-Wheel Drive):

o 0-100 km/h Acceleration: A blistering 4.26 seconds. This level of acceleration is firmly in sports car territory and is achieved through the combined, instant torque of electric motors and the power of the ICE, often in a sophisticated AWD setup.

· Tansuo 06 C-DM:

o 0-100 km/h Acceleration: Around 4.9 seconds.

· Starway Lanyue C-DM (with "Four-Engine Four-Wheel Drive Super Hybrid System"):

o Combined System Power: 619 Ps (approx. 610 hp).

o Combined System Torque: 920 N·m.

o 0-100 km/h Acceleration: In the 5-second class.

· System Power/Torque (General C-DM 5.0):

o Combined Power: 265 kW (approx. 355 hp).

o Combined Torque: 530 N·m.

· Top Speed: Some C-DM equipped vehicles can reach up to 240 km/h, suitable for unrestricted highway sections in markets like Germany.

6.3. Reliability and Durability Testing:

Chery emphasizes that its C-DM technology has undergone rigorous global testing in extreme conditions, including:

· Extreme Cold: -35°C (some engine tests down to -50°C).

· Extreme Heat: +60°C (some engine tests up to +115°C).

· Deep Water Wading tests.

This extensive validation is crucial for ensuring reliability across diverse global markets.

7. The Compact Drive Module (CDM) Itself: A Closer Look at Integrated Power

Beyond the broader C-DM system, some of the provided information details a specific "Compact Drive Module (CDM)" – likely referring to a highly integrated electric drive unit that forms a key part of the overall hybrid or electric powertrain. This module represents a sophisticated piece of electromechanical engineering.

7.1. Design Philosophy: Integration and Efficiency

· Definition: A compact unit integrating the electric motor, controller (inverter), reducer (gearbox), high-voltage distribution, and thermal management within a single aluminum alloy housing.

· Goals:

o High Integration: Reduces wiring harness length and connectors, leading to lower system cost, reduced weight, and fewer potential points of failure.

o Lightweighting: A target weight of <35 kg (including coolant) for the module, a 15-20% reduction compared to equivalent discrete component solutions. Achieved via high-strength aluminum alloy die-cast housing.

o High Efficiency: System efficiency target (motor + inverter + reducer) >96%, aiming for >97% in later generations (CDM-3.0).

o Modularity: Designed to support different power levels (e.g., 80 kW, 120 kW, 160 kW) and facilitate rapid matching with various vehicle platforms.

7.2. Generational Development (CDM-1.0 to CDM-3.0):

· CDM-1.0 (circa 2016-2018, experimental/early production):

o Integrated motor + inverter + reducer in an aluminum alloy casing.

o Focused on validating the integrated structure.

o Used IGBT power devices. System efficiency ≈ 95%.

· CDM-2.0 (circa 2019-2020):

o Introduced SiC (Silicon Carbide) MOSFET power devices, enabling higher switching frequencies and efficiency.

o System efficiency target >96.5%.

o Modular power scaling (e.g., 80/120 kW).

o Improved housing for 10% weight reduction.

o Enhanced high-voltage distribution integration.

· CDM-3.0 (circa 2021-Present):

o Further focus on lightweighting (20% housing weight reduction vs. CDM-1.0) and Software Defined Drive (SDD) architecture.

o System efficiency target >97%.

o ECU integration within the module. Optimized cooling channels.

o Continued use of SiC MOSFETs (potentially exploring SiC thyristors).

o Supports OTA (Over-The-Air) updates for drive characteristics.

o Enhanced EMC performance and security.

7.3. Core Hardware Details of the CDM Module (particularly CDM-3.0):

· Motor:

o Type: Permanent Magnet Synchronous Motor (PMSM).

o Winding: Concentrated winding.

o Magnets: High-performance NdFeB (e.g., N52H grade), rated for ≥150°C.

o Rotor: Surface-mounted PMs with epoxy potting and mechanical retention.

o Pole Pairs: Typically p=4.

o Speed: Rated ~10,000 rpm, max ~14,000 rpm.

o Power/Torque Examples:

§ 80 kW version: 250 N·m nominal, 320 N·m peak.

§ 120 kW version: 380 N·m nominal, 480 N·m peak.

§ 160 kW version: 500 N·m nominal, 650 N·m peak.

o Efficiency: Peak motor efficiency ≈ 97.2%, with a broad high-efficiency plateau (≥96% over 30-100% load).

· Controller (Inverter):

o Power Semiconductors: SiC MOSFETs (e.g., C2M0025120D: 1200V, 80mΩ, 200A). IGBTs for auxiliary circuits.

o Topology: Three-phase half-bridge (six switches). SiC MOSFETs often paralleled for higher current capacity.

o Gate Driver: Isolated gate drivers (e.g., UIRS2110) with adjustable gate resistance.

o DC Link: 400V/800V selectable. Bus capacitance ≥2mF.

o Cooling: Copper baseplate with micro-channel liquid cooling. Max heat flux ≤150 W/cm². Thermal Interface Material (TIM) with high conductivity (e.g., ≥6 W/m·K).

o EMI Suppression: Input LC filters, output π-filters, common-mode chokes.

· Reducer (Gearbox within the CDM module):

o Material: 20CrMnTi alloy steel, case-hardened (HRC 60-62).

o Gear Geometry: Specific module, pressure angle, and width for optimal strength and NVH.

o Ratio: Single-stage reduction (e.g., i = 9.5).

o Efficiency: High, e.g., η = 98.2%.

o NVH Optimization: Gear surface micro-finishing, dynamic balancing.

· Housing:

o High-pressure die-cast aluminum alloy (e.g., A380) with T6 heat treatment.

o Wall thickness 3-5 mm with optimized internal ribbing.

o IP6K9K sealing, dual O-ring/silicone seals, corrosion-resistant surface treatment.

· Sensors:

o Current: Hall-effect isolated sensors (e.g., LEM HAX series, ±0.5% accuracy).

o Voltage: Resistive dividers + ADCs.

o Speed/Position: Incremental encoder (e.g., 1024 PPR), resolver, or sensorless estimation techniques.

o Temperature: NTC thermistors (accuracy ±0.5°C).

· Control ECU (within CDM-3.0):

o MCU: 32-bit dual-core automotive MCU (e.g., Infineon Tricore TC397 @ 300MHz, 4MB Flash, 1MB SRAM).

o Communication: CAN FD (5 Mbit/s), Ethernet AVB (100 Mbit/s), FlexRay (optional).

o Diagnostics: JTAG/SWD, UDS (ISO 14229), XCP on CAN/Ethernet.

o Security: Secure element (e.g., Infineon SLI 97), AES-256 encryption, RSA-2048 authentication.

7.4. Control Algorithms and Software Architecture (for the CDM Module):

· Layered Software:

o Hardware Abstraction Layer (HAL).

o Real-Time Operating System (RTOS) - e.g., AUTOSAR OS 4.2.

o Middleware (Communication stacks, diagnostic services).

o Application Layer (Motor control, thermal management, diagnostics, OTA).

· Motor Control:

o Field-Oriented Control (FOC): Standard for high-performance PMSM control.

o Coordinate Transforms: Clarke & Park.

o PI Controllers: For torque and flux loops.

o Space Vector PWM (SVPWM): Carrier frequency ≥10 kHz. Dead-time compensation.

o Position/Speed Estimation: Sensor-based (encoder/resolver) or sensorless (e.g., Extended Kalman Filter - EKF) for rotor position.

· Fault Diagnosis & Tolerant Strategies:

o Detection of short/open circuits, over-temperature, over/under-voltage, sensor failures.

o Current imbalance monitoring, Safe Operating Area (SOA) monitoring.

o Redundancy (e.g., dual current sampling).

o Cascaded derating, fault isolation, safe stop, fault code logging.

· OTA Updates:

o Secure bootloader, secure firmware update mechanism.

o Dual-bank memory for seamless updates and rollback.

o Differential updates for efficiency.

o TLS 1.3 communication, mutual authentication. Conformance to ISO 21434 cybersecurity standards.

7.5. Thermal Management & Reliability (for the CDM Module):

· Thermal Simulation: ANSYS Icepak or similar tools used for modeling heat sources (SiC MOSFETs, motor windings) and cooling paths. Max junction temp target ≤125°C.

· Cooling Circuit: Liquid cooling (e.g., 50:50 ethylene glycol-water). Optimized flow paths, potentially shared with other vehicle systems.

· Accelerated Life Testing (ALT):

o Temperature cycling (-40°C ↔ 150°C, 500+ cycles).

o Vibration testing (e.g., PSD profile 20-2000 Hz, 15g RMS, 8h).

o Humidity testing (e.g., 85°C/85%RH, 96h).

o Aiming for L10 life > 1 million hours under normal operating conditions.

7.6. EMC & Safety (for the CDM Module):

· EMC Design: Adherence to CISPR 25 Class 5 (automotive component emissions) and ISO 11452 (immunity). Shielded housing, filtered I/O, careful PCB layout.

· Transient Suppression: TVS diodes, surge filters.

· Functional Safety (ISO 26262):

o ASIL (Automotive Safety Integrity Level) targets (e.g., ASIL B/C for different functions).

o Safety mechanisms: dual-channel monitoring, watchdog timers, fault-safe states.

o HARA, FMEA, FMEDA analyses.

o Fault injection testing, redundancy verification.

This highly integrated CDM module, with its focus on SiC technology, advanced control, and robust engineering, is a testament to Chery's ambitions in core electric drive componentry. It's a critical enabler for both their advanced PHEVs and potentially their BEV offerings.

8. Competitive Crucible: C-DM vs. The Global Hybrid Landscape

No technology exists in a vacuum. Chery's C-DM enters a fiercely competitive arena populated by established hybrid giants and innovative peers. An objective comparison is essential.

8.1. Key Competitors and Their Philosophies:

· Toyota Hybrid System (THS): The pioneer and benchmark for decades. Known for its e-CVT (power-split device), exceptional reliability, and consistent real-world fuel economy. Emphasizes seamless power delivery and efficiency, particularly in urban and mixed driving.

· BYD DM-i (Dual Mode - intelligent): A major force, particularly in China. Focuses heavily on electric-drive dominance, with the engine often acting as a generator or providing direct drive at higher speeds. Known for very low "loss-of-charge" fuel consumption and compelling pricing. Primarily uses a single-speed reduction for the main traction motor, coupled with an efficient Atkinson cycle engine.

· Honda i-MMD (intelligent Multi-Mode Drive): Primarily operates as a series hybrid at low speeds and an engine-direct-drive at higher speeds, with a clutch engaging the engine to the wheels. Known for its smooth transitions and strong electric-drive feel.

· Geely Leishen Power/Hi·X: Employs a 3-speed DHT (similar in concept to Chery's higher-end DHTs), aiming to blend performance with efficiency across a wider speed range.

· Great Wall Motor (GWM) L.E.M.O.N. DHT: Also utilizes a multi-speed DHT architecture (typically 2-speed), offering another take on optimizing engine and motor contributions.

8.2. Chery C-DM: Advantages and Differentiators

· Engine Thermal Efficiency: Chery's claim of >44.5% (and striving for 48%) for its 1.5TGDI hybrid engine is a significant advantage. This directly impacts fuel consumption when the engine is running, potentially giving it an edge in charge-sustaining mode or during longer journeys.

· Multi-Speed DHT (3-Speed):

o Performance Potential: The 3-speed DHT, especially when paired with powerful motors and the 2.0TGDI engine, offers the potential for stronger high-speed acceleration and a more engaging driving experience compared to e-CVTs or single-speed systems. It allows the engine to operate in its power band more effectively during aggressive driving.

o Highway Efficiency: At sustained high speeds, a well-chosen gear ratio can allow the engine to operate at a lower, more efficient RPM compared to systems where the engine might be revving higher through an e-CVT or if a single gear is not optimal.

· Versatility of Architecture (CDM/CEM, -S, -O variants): The Kunpeng architecture's explicit segmentation into high-saving, high-performance, and off-road lines, each with tailored engine/DHT/motor combinations (including specialized off-road DHTs with low range and diff locks), demonstrates a breadth of application that is quite ambitious.

· Fast Charging Capability: The availability of DC fast charging on some C-DM PHEVs is a notable convenience, allowing for quicker battery top-ups and maximizing electric driving.

· Aggressive Range Figures: The claimed comprehensive ranges (1400km+ and even 2000km+ for future iterations) are headline-grabbing and address range anxiety effectively.

8.3. Potential Challenges and Areas for Scrutiny (The "Objective but Sharp Critique"):

· Complexity of Multi-Speed DHTs: While offering performance benefits, a 3-speed DHT with multiple clutches and intricate control logic is inherently more complex mechanically and potentially more challenging to calibrate for perfect smoothness across all conditions compared to simpler e-CVTs or single-speed systems. Long-term reliability and refinement of such complex systems are always under scrutiny until proven over millions of vehicles and years.

o Nuance: While Toyota's THS is a paragon of smoothness, it's achieved via a planetary gearset e-CVT, which has its own unique characteristics, sometimes described as a "rubber band effect" by detractors. Chery's geared approach, if executed well, could feel more direct.

· Real-World "Loss-of-Charge" Fuel Consumption vs. Leaders: While Chery posts impressive low fuel consumption figures in specific tests, the "loss-of-charge" (亏电 - kuīdiàn) fuel consumption in standardized cycles (like WLTC) needs consistent, independently verified parity or superiority against best-in-class competitors like BYD's DM-i, which has set a very high bar (e.g., around 3.8 L/100km for some models). Some quoted figures for Chery C-DM (e.g., 4.2L or 4.76L/100km WLTC) are good, but the market is hyper-competitive here.

o Context: It's a trade-off. BYD's DM-i often prioritizes electric drive and engine-as-generator, which can be extremely efficient in specific cycles. Chery's 3-speed DHT might offer better performance or efficiency in other scenarios (e.g., sustained high-speed, dynamic driving) at the potential cost of ultimate "loss-of-charge" frugality in certain specific conditions compared to systems hyper-optimized for that single metric.

· Brand Perception & Global Track Record: While Chery is a major player, in many international markets, brands like Toyota have a decades-long reputation for hybrid reliability. Building this level of trust for a complex new powertrain takes time and consistent real-world performance.

· Software Refinement and Integration: The smooth and intelligent operation of a hybrid system relies heavily on software. Ensuring seamless transitions, optimal energy management, and intuitive driver interaction across 9 or more operating modes is a continuous refinement process. The "Software Defined Drive" ambition for CDM-3.0 is promising here.

· Cost of Advanced Features: Technologies like SiC MOSFETs, multi-speed DHTs, and high-performance motors can add cost. Chery will need to balance these advanced features with competitive pricing, especially in price-sensitive segments. The estimated cost for the CDM-3.0 module (around $1200/set) suggests a strong focus on cost control through integration and potentially domestic SiC supply.

It's not about being "better" in every single metric, but about offering a compelling package of performance, efficiency, and features that appeal to a target customer base. Chery's C-DM, with its emphasis on engine efficiency and versatile DHTs, charts a distinct path.

9. Strategic Vision: Super Hybrids, Open Source, and Global Ambitions

Chery's C-DM technology is not just an engineering exercise; it's a cornerstone of a broader corporate strategy aimed at leadership in the NEV era.

9.1. "Chery Super Hybrid" (CSH) Brand:

The launch of a dedicated "Super Hybrid" brand or initiative signifies a focused marketing and product development push. This helps to create a distinct identity for Chery's advanced hybrid models. The strategy includes:

· Electrifying Popular Models: Bringing C-DM technology to existing successful vehicle lines like the Tiggo SUVs (Tiggo 7, 8, 9) and potentially Arrizo sedans.

· Ambitious Targets: Plans to launch as many as 39 hybrid models by 2025 (across HEV, PHEV, REEV types, though primarily PHEV for C-DM focus). This includes 19 from the Chery brand, 9 from Jetour, 5 from Exeed (Starway), 2 from iCAR, 3 from OMODA/JAECOO, and 1 from Luxeed (collaboration with Huawei).

· Pushing Technical Boundaries: Targeting even higher thermal efficiencies (up to 46.5% mentioned for CSH engines), DHT efficiencies (up to 93% - though DHT125 already claims 97.6%), and powerful outputs (280 kW, 24,000 rpm motors).

9.2. Hybrid Technology Open Source Initiative:

This is a particularly interesting and potentially transformative strategic move. Chery has announced plans to open-source its hybrid technology, initially targeting universities and research institutions.

· Aims:

o Foster Innovation: By sharing technology, Chery hopes to stimulate broader research and development in the hybrid field.

o Promote Collaboration: Encourage partnerships between industry and academia.

o Establish Standards: Potentially influence the development of global or regional hybrid technology standards.

o Talent Development: Cultivate a new generation of engineers skilled in hybrid technologies.

· Initial Steps: Donating hybrid-dedicated engines and providing interface data to universities.

· Global Implications: If successful, this could accelerate hybrid technology adoption and development globally, positioning Chery as a thought leader and enabler. It's a bold move that contrasts with the traditionally proprietary nature of automotive R&D.

9.3. Global Market Expansion:

Chery has significant export operations. C-DM technology, with its adaptability to different performance and efficiency requirements, is crucial for its global ambitions. The ability to meet diverse emission standards (like Guo VI B + RDE) and driver preferences is key. The focus on extreme environment testing also supports this global outlook. The claim that C-DM vehicles already account for over 50% of Chery's exports underscores its importance.

10. Specialized Prowess: CDM-S for Performance, CDM-O for Off-Road Dominance

The Kunpeng architecture's adaptability truly shines with its specialized "-S" (Sport/Performance) and "-O" (Off-Road) variants.

10.1. CDM-S/CEM-S (High Performance):

· Powertrain: Typically combines the 1.5TGDI or, more often, the 2.0TGDI engine with higher-capacity DHTs (DHT165, DHT230, DHT280) and potent electric motors (EDU240, EDU400).

· Focus: Maximizing acceleration, dynamic response, and sustained power output. Models like the Yaoguang C-DM e-AWD with its 4.26s 0-100km/h time exemplify this line.

10.2. CDM-O/CEM-O (Strong Off-Road):

This is where Chery is making a particularly aggressive push, aiming to deliver uncompromising off-road capability.

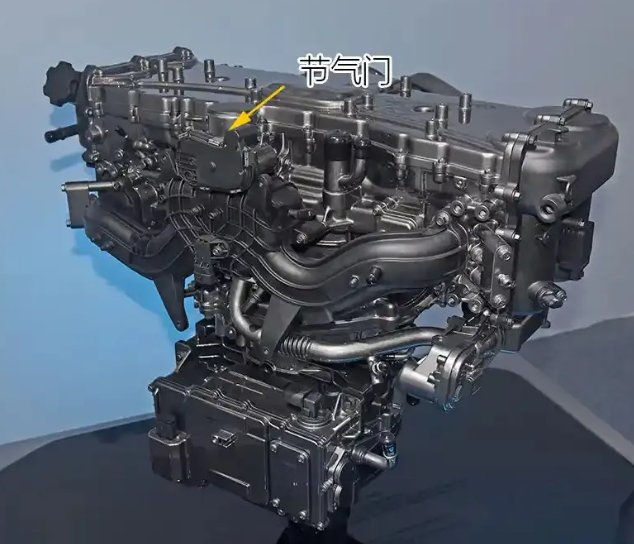

· Engine: Specialized 1.5TGDI or 2.0TGDI engines, with the 2.0T featuring IP68 rating, extreme tilt operation, and wide temperature tolerance.

· Transmission: Robust DHT165 or DHT280, with the latter including dedicated off-road gearing (low range) and differential lock configurations.

· Electric Drive: Powerful EDU600 dual-motor systems, enabling advanced torque vectoring.

· Super Hybrid Off-Road Platform: A conceptual platform showcasing the pinnacle of this approach:

o Vector Four-Motor Drive: Potentially one motor per wheel or advanced dual-motor axles.

o Maximum Power Output: Up to 1300 hp claimed for the platform concept.

o Capabilities: 100% gradeability, in-place turning ("tank turn"), crab-walking (with rear-wheel steering).

· Applications: Envisioned for models like Ruijia 9L, Shanhai T2, and the Jetour Zongheng (Traverse) G900.

This dedicated off-road hybrid architecture is a clear statement of intent to compete in the demanding and lucrative lifestyle/adventure vehicle segment.

11. Peeking into the Future: Horizontal Opposed Engines & Hydrogen

Chery's R&D isn't confined to current C-DM iterations. The display of a "Kunpeng Tianheng" horizontal opposed twin-cylinder engine designed as a range extender is fascinating.

· Horizontal Opposed Range Extender:

o Advantages: Lower center of gravity, reduced vertical height (packaging benefits), potentially smoother operation due to inherent primary balance.

o Significance: Shows Chery exploring diverse engine configurations for specific roles like range extension, potentially offering packaging and NVH advantages over conventional inline engines in REEV applications. This is a niche but technically interesting area, with very few global players (Subaru for primary drive, and recently BYD for an仰望 U7 range extender) actively using boxer engines.

· Fuel Cell and Hydrogen Engine Display:

o The presence of fuel cell stacks and hydrogen internal combustion engine concepts at Chery's technology showcases indicates a comprehensive, long-term R&D strategy that looks beyond current battery-electric and hybrid solutions. While likely further from mass commercialization, it demonstrates a commitment to exploring all avenues of future sustainable mobility.

12. Conclusion: Chery's C-DM – A Formidable Contender with a Clear Trajectory

Chery's Kunpeng Super Performance Electric Hybrid C-DM technology is, without doubt, a significant achievement and a powerful statement of the company's engineering capabilities. It's a multifaceted system built on a foundation of highly efficient dedicated hybrid engines, versatile multi-speed and single-speed Dedicated Hybrid Transmissions, and robust electric drive components.

Strengths are Abundant:

· World-Class Engine Efficiency: The >44.5% thermal efficiency of the 1.5TGDI engine is a standout achievement.

· Versatile Powertrain Architecture: The ability to scale from hyper-efficient commuters to high-performance sports sedans/SUVs and extreme off-roaders from a common technological wellspring is impressive.

· Performance on Tap: Sub-5-second 0-100 km/h acceleration for performance variants places C-DM vehicles in elite company.

· Innovative DHT Design: The 3-speed DHT, while complex, offers a unique approach to balancing efficiency and performance across diverse driving conditions.

· Commitment to Core Technology: The development of highly integrated "Compact Drive Modules" with SiC technology underscores a deep commitment to mastering the electromechanical heart of NEVs.

· Strategic Clarity: The "Super Hybrid" branding, ambitious model rollout, and bold "Open Source" initiative indicate a clear vision for the future.

Acknowledging the Ascent:

The journey to global powertrain leadership is a marathon, not a sprint. While C-DM is technically sophisticated, Chery faces the ongoing challenge of:

· Building Global Trust: Consistent, long-term, real-world reliability and customer satisfaction across diverse global markets are paramount for building the kind of legacy enjoyed by established hybrid leaders.

· Refining Complexity: The advanced 3-speed DHT must continue to prove its mettle in terms of seamlessness and long-term durability against simpler, highly proven alternatives.

· Hyper-Competitive Efficiency Benchmarks: In the crucial "loss-of-charge" fuel economy stakes, particularly in standardized tests, the C-DM must consistently demonstrate parity or advantages against the very best in the PHEV segment globally. Every decimal point matters in this arena.

· Software Ecosystem Maturity: As vehicles become increasingly software-defined, the continuous refinement of control algorithms, user interface, and OTA capabilities will be critical.

Chery's C-DM is not just chasing existing benchmarks; it's aiming to set new ones. The technology demonstrates a clear understanding of hybrid powertrain fundamentals, coupled with a willingness to innovate and tackle complex engineering challenges. Its emphasis on both high efficiency and robust performance, along with its adaptability to various vehicle types, makes it a compelling proposition.

The global automotive industry is watching. With its sustained investment in R&D, its transparent (and even open-source) approach to technology, and its aggressive product strategy, Chery, powered by its C-DM technology, is undeniably a force to be reckoned with in the ongoing electrification revolution.

Should you be looking to explore procurement opportunities for vehicles equipped with this cutting-edge C-DM technology, or if you wish to gain deeper technical insights into its architecture and capabilities, you are welcome to connect with William at +86 186 6977 8647. He can serve as a valuable resource for your inquiries.
