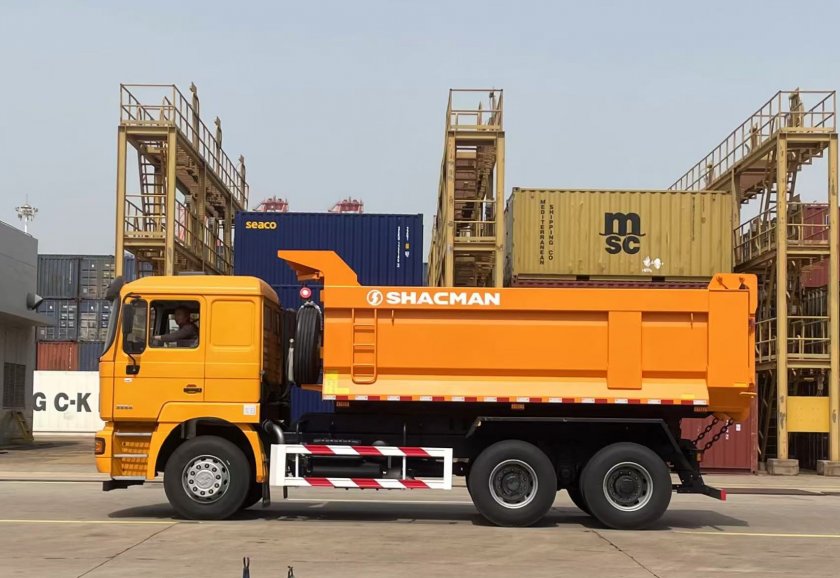

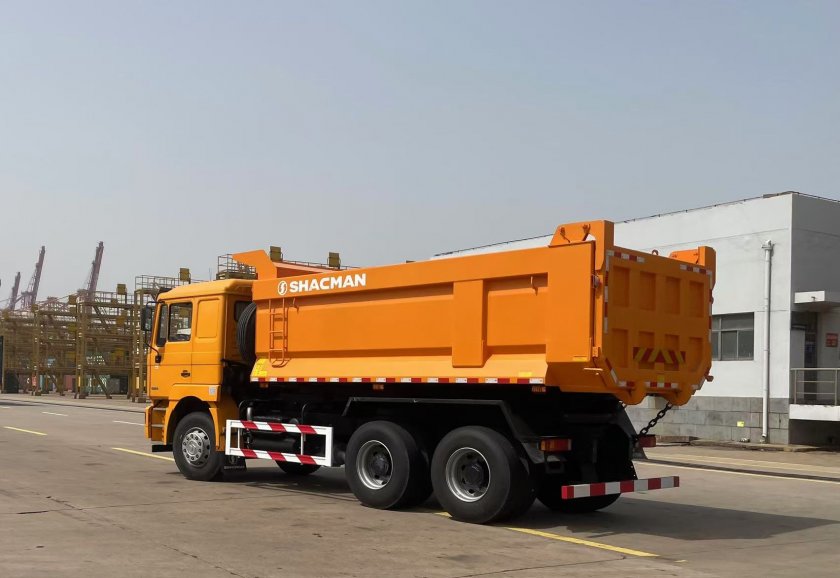

SHACMAN 6x4 F2000 Dump Truck Mining Quarry Transport Tipper For Algeria Market
Sales: Lynn
Whatsapp + 86 133 7059 3216
--Truck body from 15cbm~20cbm, mining type dump body, for ore sand, minerals transportation
--Options for tires: 12.00R20 radial tire, 12R22.5 and 315/80R22.5 tubeless tire.
--Standard color: White, Red, Yellow (Other color is optional)
Traction type: 6x4
Drive System: LHD(RHD is optional)
Cabin:F2000 Flat Cabin, one sleeper, Air Conditioner
Engine Brand: WEICHAI
Model: WP10.290E32 EuroII Rated power :290hp (340hp is optional)
Engine displacement: 9.726 liters
Gearbox: FAST 9 Speeds (9JS119)
Clutch: Ф430 Diaphragm type
Steering: ZF technology
Axle: Front 7.5 Ton MAN axle; Rear 13 Ton STR double reduction axle, ratio:5.73
Max. running speed (km/h): 77
Tire: 12.00R20, 12R22.5
Fuel tank: 400L(Aluminum)
Kerb weight (kg): 12100
Payload (kg): 25000
Wheel base (mm): 3750+1350
Dimensions（L*W*H）(mm): 8550x2500x3450
Dump body
5200x2300x1500mm, 5400x2300x1500mm, 5600x2300x1500mm, teel thickness (mm), Bottom 8, side 6. Thickness can be changed according to the goods loaded.
Hydraulic lifting system: Middle T lifting
Following is the detail photo:

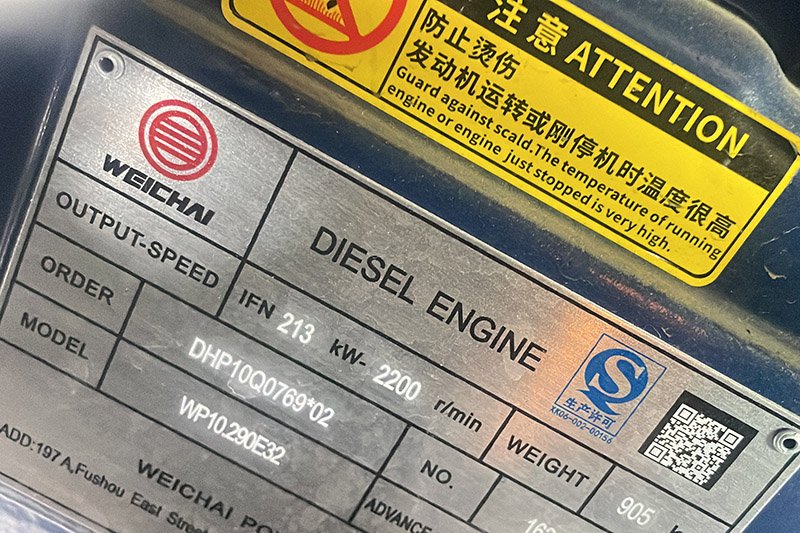

WP10.290E32, 290HP Engine

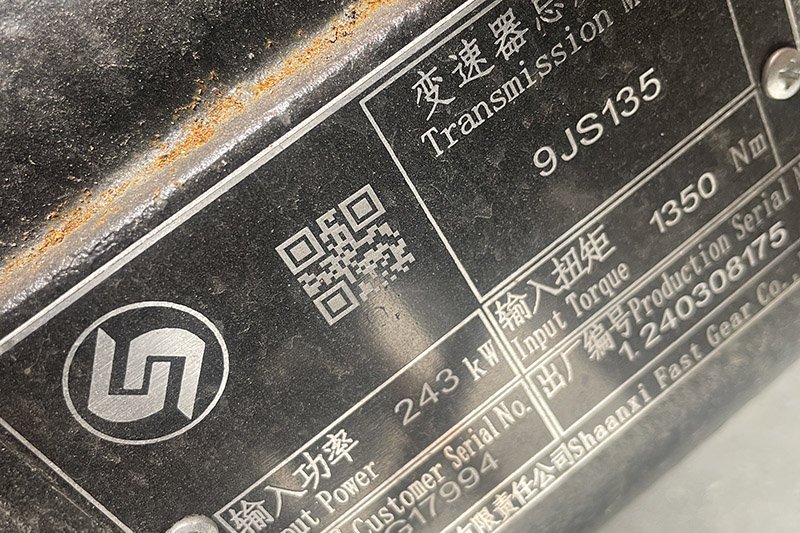

Gearbox: 9JS135, 9 forward speed

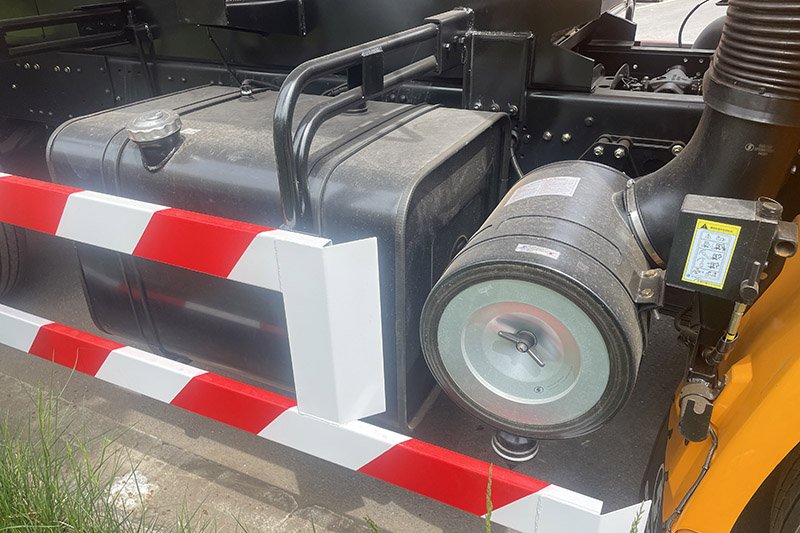

Fleetguard Air Filter:

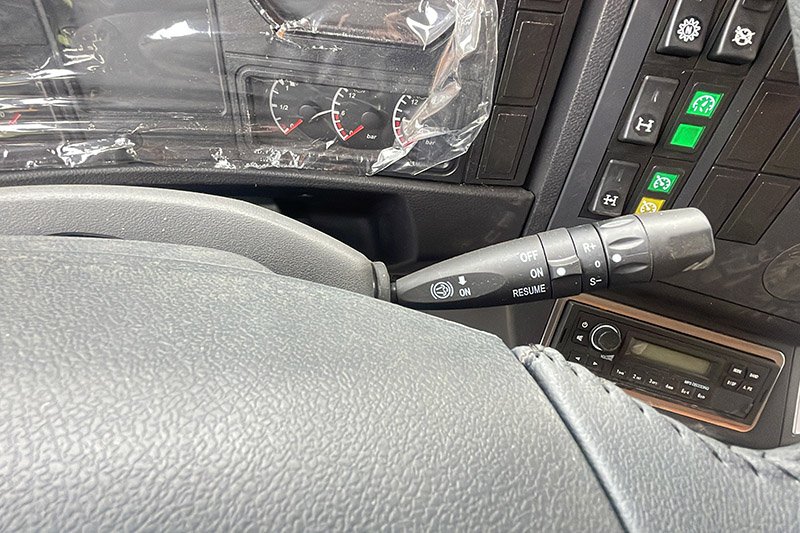

Cruise Control:

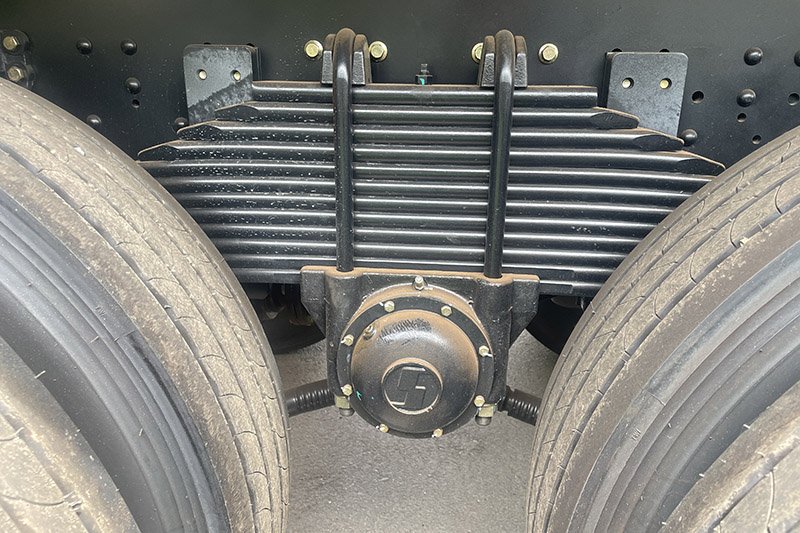

Leaf Spring Suspension:

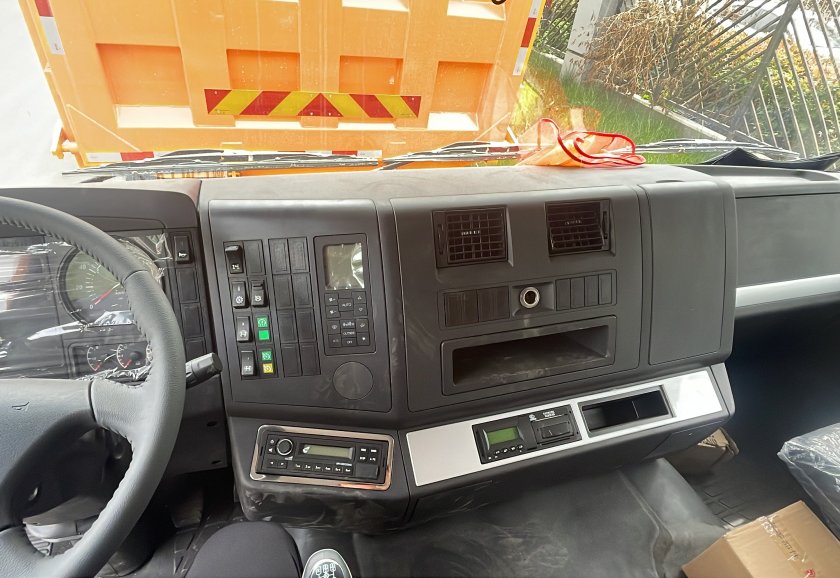

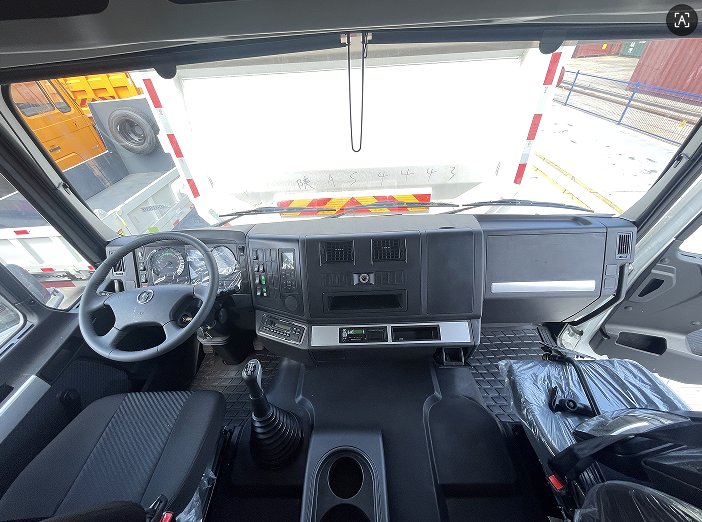

Cabin interier:
