BMW B48 Engine: Why 4-Cylinder Turbo Replaced 6-Cylinder NA, The Logic of Modularity, and Facing Reliability Issues

Good. Let's analyze BMW's B48 engine by understanding the broader trends in engine technology and the specific engineering choices made.

First, what makes a good engine? For car consumers, it's a balance of four things: absolute performance, smooth and quiet operation, fuel efficiency, and reliability. For automakers, the primary consideration is cost, followed by optimizing these other aspects.

Ten or twenty years ago, 6-cylinder naturally aspirated (NA) engines, while capable in performance, struggled with manufacturing cost and fuel consumption in the face of rising production expenses and increasingly strict emissions regulations. Manufacturers wanted to boost performance but needed solutions that were more cost-effective and compliant.

The question arose: could reducing the number of cylinders – a change less detrimental to smoothness compared to further reductions (like to a 3-cylinder) – achieve the necessary improvements in cost, fuel economy, and absolute performance, thereby serving as a technological replacement for the older 6-cylinder NA engines? This became the problem traditional internal combustion engine manufacturers faced. The most fundamental reason driving this was cost.

Two significant external factors amplified this cost pressure: China's vehicle displacement tax, introduced on September 1, 2008, which levied consumption tax based on engine size; and the continuously tightening vehicle emission standards in Europe.

The Downsizing Revolution: Driven by Cost and Regulations

The shift from 6-cylinder naturally aspirated engines to 4-cylinder turbocharged engines is fundamentally a response to these cost and regulatory pressures, while striving to maintain or improve performance.

The cost savings in a 4-cylinder engine compared to a 6-cylinder are substantial and apply across almost all components. Parts like the cylinder block, cylinder head, valve cover, crankshaft, oil pan, pistons, intake and exhaust manifolds, and cooling system all differ in number and size, leading to lower manufacturing costs for the 4-cylinder.

This widespread cost advantage, coupled with the need to meet stricter fuel economy and emissions standards (which the 4-cylinder turbo is better positioned to address), became a primary reason for the widespread adoption of 4-cylinder turbocharged engines, often replacing their 6-cylinder NA predecessors. This is what many manufacturers saw as the viability of the 4-cylinder turbo solution.

Engineering Challenges and Solutions in Downsizing

Transitioning to fewer cylinders introduced technical hurdles. Automakers had to engineer solutions to ensure the new 4-cylinder turbos could match or surpass the desired characteristics of the outgoing 6-cylinder NAs in terms of performance, smoothness, fuel economy, and reliability.

Performance: To compensate for the reduced displacement and cylinder count, turbocharging is the key. This involves using exhaust gas to drive a turbine that forces more air into the cylinders, boosting power. While some early, and even a few current, 4-cylinder turbo engines could feel sluggish at low RPM due to inefficiencies in the turbocharger, intercooler, and wastegates, this issue is largely resolved in modern mainstream designs.

Fuel Economy: Fuel efficiency primarily depends on engine speed and airflow efficiency (related to throttle and manifolds). The actual difference in fuel economy between 4-cylinder and 6-cylinder engines is relatively small. Notably, at the same vehicle speed, a 4-cylinder turbocharged engine generally operates at a lower RPM than a 6-cylinder naturally aspirated one. While complex interactions exist regarding airflow efficiency, the overall fuel economy gap is modest, making the 4-cylinder turbo a viable option for meeting fuel efficiency and emissions targets.

Smoothness: While 3-cylinder engines are known for vibration due to gaps in their four-stroke cycle completion over 720 degrees of crankshaft rotation, 4-cylinder engines avoid this inherent imbalance by having alternating piston pairs that ensure continuous operation. However, a 4-cylinder engine is less smooth than a 6-cylinder. This difference lies in the piston stroke overlap over 720 degrees; a 6-cylinder distributes its strokes among more cylinders, resulting in less individual piston movement amplitude per stroke and smoother operation. While the difference isn't as large as the jump from 4 to 3 cylinders, it's significant. Extensive NVH (Noise, Vibration, Harshness) optimization, alongside factors like ignition order and strategy, has allowed modern 4-cylinder engines, including the B48, to achieve operating smoothness where the difference from a 6-cylinder is often not significantly noticeable.

Reliability: The idea that 6-cylinder engines are more "relaxed" often refers to comparisons within the same aspiration type (NA vs NA, or Turbo vs Turbo). Comparing a 4-cylinder turbo to a 6-cylinder NA producing the same peak power, the 4-cylinder turbo's pistons have larger movement per stroke theoretically leading to greater friction and oil consumption. While 6-cylinder NA engines might have higher RPM at the same vehicle speed, the theoretical wear concerns for the 4-cylinder turbo at peak output remain. However, manufacturers are continuously improving the reliability of 4-cylinder turbos. For automakers like BMW and Audi, the perceived difference in long-term performance "relaxation" between their modern 2.0T 4-cylinders and the replaced 6-cylinders is often minimal in typical driving. Furthermore, increasingly strict emissions regulations impact the low-speed performance feel of 6-cylinder engines (both NA and turbo) by restricting initial throttle opening, sometimes making a 3.0T feel less powerful than a 2.0T in low-speed daily driving, though the 3.0T might have better power linearity.

Modular Engine Design: The Logic of Commonality

Beyond the direct benefits of fewer cylinders, the manufacturing strategy also favors modular engine design. Modular engines, in my view, consist of inline 3, 4, and 6-cylinder engines designed with the same single-cylinder displacement, typically around 500cc. This common design allows for high parts commonality across different engine variants, requiring changes to only a small number of components as cylinder count increases, unlike the significant structural differences between configurations like inline-four and V6 engines.

Before modular design, engines with different displacements and cylinder counts had low parts commonality, complicating manufacturing cost structures and potentially limiting focus on performance or reliability optimization. The essence of modular engines is fundamentally cost control and improving the commonality of repair parts, and assisting with engine weight management. Manufacturers like BMW and Mercedes-Benz are considered pioneers with extensive experience and technology in this modern approach.

This modular design facilitates manufacturing efficiency and also improves maintenance convenience and reduces costs (e.g., simpler mechanic training, fewer unique parts).

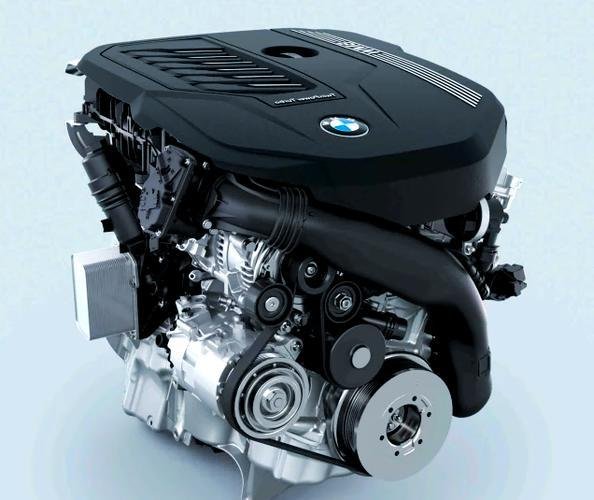

BMW's B48 Engine Family: Evolution and Technology

Let's now focus on BMW's specific implementation, the B48 engine family.

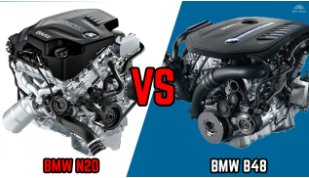

B48 vs N20 Upgrades: The B48 built upon its predecessor, the N20, with several key upgrades. The cylinder block design changed from the N20's open deck to a closed deck in the B48, providing a structural safeguard against oil leak risks. The bore and stroke dimensions were altered, resulting in a smaller piston diameter but a longer stroke, contributing to improved fuel efficiency in daily driving. The cooling system adopted a mechanical water pump with an electronic thermostat module (replacing the N20's electronic pump), aiding faster warm-up and more stable thermal management, although this is also noted as involving component selection considerations ('减配' - jiǎnpèi, cost/configuration reduction). The oil pan material reverted from the N20's plastic to aluminum alloy in the B48. The engine's balance shafts were strategically positioned on both sides of the crankshaft and connected to it, enhancing vibration cancellation. Fuel injection pressure was increased to 350 bar, accompanied by upgrades to fuel system details.

B48TU Technology Updates: Further refinements were introduced in the B48TU (Technology Update) version compared to the initial B48. Fuel injectors were made smaller, working with the 350 bar pressure for improved injection precision. Lightweight design continued, with nearly 2kg reduced weight through material changes and the Arc-Wire Spray coating process. The timing chain system was simplified from a dual chain to a single chain by removing a central idler pulley, achieving lightweighting without losing function. The belt tensioner design was simplified and integrated onto the engine itself, shortening the belt length and allowing removal of redundant parts for a lightweighting effect.

High vs Low Power Variants: Hardware Matters

Beyond software tuning (like turbo boost pressure and compression ratio, where higher power versions actually have a lower compression ratio to prevent knock and allow advanced ignition timing), the B48 has significant hardware differences between high and low power variants, necessitating improved heat dissipation for higher outputs. The most obvious hardware distinctions are the exhaust manifold design (integrated into the cylinder head), the cylinder head design itself, and the turbocharger. High-power versions feature independent exhaust manifolds for each cylinder for better heat dissipation, unlike the low-power version's integrated manifold in two groups. It is a significant safety risk to simply flash the ECU of a low-power version to high-power settings without upgrading the corresponding heat dissipation hardware.

BMW's Signature Valve Control Technologies

Key to the B48's performance are BMW's signature valve control technologies: Double VANOS and Valvetronic.

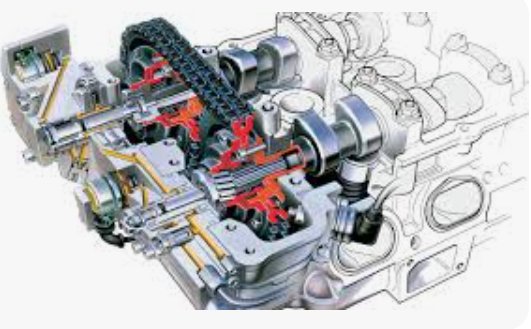

Double VANOS provides variable valve timing for both intake and exhaust camshafts (unlike systems only controlling intake). It uses independent camshaft gears controlled by the ECU to adjust valve timing based on engine speed and load, improving throttle response and power precision. It helps solve throttle response delay, partly by allowing the system to bypass traditional steps involving airflow sensing and fuel volume calculation before setting ignition timing.

Valvetronic is a continuously variable intake valve lift system. It precisely controls the degree to which the intake valves open. Engines equipped with Valvetronic (alongside Double VANOS) primarily control engine power output by varying the intake valve lift, rather than relying solely on a traditional throttle body. This system precisely controls the amount of air entering the cylinder by adjusting valve lift, either bypassing or supplementing a separate throttle.

Addressing Reliability: The B48 Oil Burning Issue

While the B48 is considered much improved in stability compared to the older N20, it has faced a notable reliability problem: oil burning.

It's reported that imported B48 versions (B20 A and B) have significantly fewer issues than domestically produced versions (C and D), with the C version burning more oil than the D. It's noted that domestically produced C/D versions feature component reduction ('减配') in their cooling system compared to imported A/B versions and the B58 engine (which uses the same cooling for high and low power), with the C version using an air-cooled system compared to the D version's water-cooled system. This reduction lowers cost and limits performance but is said to be unrelated to the oil burning issue.

The real reason for the oil burning problem is attributed to a design defect in the valve cover, leading to cracks. This defect allows engine oil to seep out, leading to increased oil consumption. The seeping oil enters cylinders (specifically cylinders 1 and 2 are mentioned) and participates in combustion, causing significant carbon buildup inside the cylinders and on the spark plugs. This increased carbon and oil contamination ultimately exacerbates piston wear.

Adding engine oil beyond the officially recommended amount is only a temporary fix, addressing the symptom (low oil level detected by the computer) but not the root cause (the valve cover defect). It doesn't solve the underlying problem and can worsen the situation by increasing the amount of oil available to be burned in the cylinders. The correct solution, if the issue occurs, is to replace the valve cover and spark plugs. After replacement, oil consumption and spark plug condition should be monitored.

Overall Assessment and Concerns

Even the domestically produced version of BMW's B48TU engine is considered to have top-tier responsiveness and fuel efficiency compared to competitors in its class. However, the probability of quality issues like oil burning is reported to be significantly higher in the domestically produced version than in the imported version. The concern is heightened by the fact that early domestically produced B38 engines (the non-TU version) reportedly had very few similar problems. This leads to questions about potential issues with the "technical upgrades" (localization and manufacturing processes) implemented by the joint venture, Brilliance BMW.

Okay, that concludes this analysis. Thank you, goodbye.
